Low Smoke Zero Halogen LSZH Fire Resistant Cable Fiberglass Braid Wire Custom Length

Brand Name : Zhongdong

Model Number : WDZN-YJY

Certification : IEC 60502-1

Place of Origin : Hebei，China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 100km/week

Delivery Time : 10days

Packaging Details : Steel wooden drum

Size : 1.5sqmm~800sqmm

Conductor Typ : Copper

Sheath Color : Sheath Color

Working Temperature : 90℃

Jacket : LSZH (LOW SMOKE AND HELOGEN FREE)

Voltage Rating : Uo/U 300/500V

Contact Now

Low Smoke Zero Halogen Fire Resistant Cable Fiberglass Braid Wire

Application

Fire-resistant cables are designed to maintain circuit integrity and continue operating during fire emergencies, ensuring critical systems remain functional. These cables are essential in environments where fire safety and uninterrupted power supply are priorities

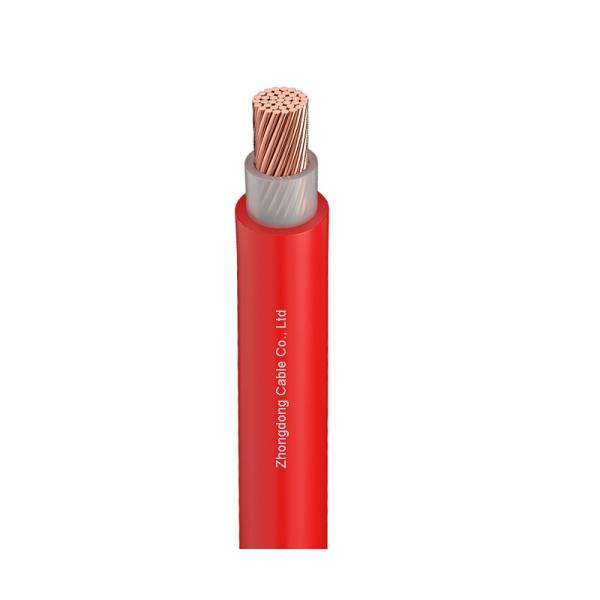

Low Smoke Zero Halogen LSZH Fire Resistant Cable Fiberglass Braid Wire Custom Length

Construction

  • Conductor: Plain annealed copper (class 2, normal stranded or compact stranded)
  • Fire barrier: Mica tape
  • Insulation: XLPE
  • Filler, binder and inner covering: PP, PET, LSZH
  • Outer sheath: LSZH

Advantage

  1. Life Safety‌: Protects human lives by maintaining critical systems during fires.
  2. Asset Protection‌: Minimizes damage to infrastructure and equipment.
  3. ‌Regulatory Compliance‌: Meets stringent building codes and safety regulations.

Technical parameters

Single Core

Cross section of conductor(mm²) Conductor structure Insulation Thickness(mm) Copper sheath thickness(mm) Approx.cable diameter(mm) Max resistance of conductor at 20℃ (Ω/km)
1×70 14 1.1 1.4 15.1 0.268
1×95 19 1.1 1.5 17.3 0.193
1×120 24 1.2 1.5 19.0 0.153
1×150 30 1.4 1.6 20.9 0.124
1×185 37 1.6

1.6

 23.0 0.0991
1×240 48 1.7 1.7 25.7 0.0754
1×300 61 1.8 1.8 28.3 0.0601
